Programmable CNC Router Machine High Temperature Resistant Worktable

Jinan Blue Elephant CNC Machinery Co., Ltd.

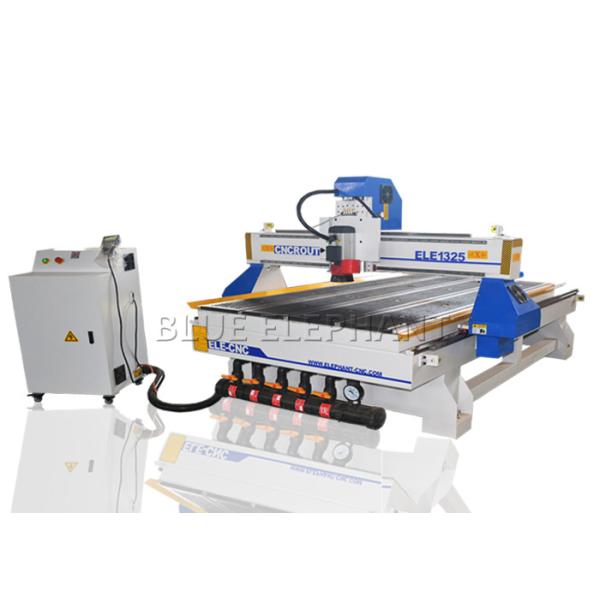

Programmable CNC Router Machine High Temperature Resistant Worktable

  • 1
  • 2

Brand Name : BLUE ELEPHANT

Model Number : ELE1325

Certification : CE, ISO9001,SGS,CIQ

Place of Origin : Jinan City, Shandong Province, China

MOQ : 1 set

Price : US $5,999 - 9,999 / Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 Set/Sets per Month

Delivery Time : 10-15 working days

Packaging Details : Standard marine export plywood case

Voltage : AC380V/50/60Hz,3PH (Option: 220V)

Dimension(L*W*H) : 3200*2140*1850mm

After-sales Service Provided : Engineers available to service machinery overseas

X,Y,Z Working Area : 1300x2500*200mm

Control system : DSP control system

Inverter : 5.5kw Delta Inverter

Spindle power : 4.5 kw HSD air cooling spindle

Table structure : T-slot&vacuum table

Guide rail : Hiwin 20# Square Guide Rail

Spindle Speed : 0-18000RPM

Drive motor : Stepper

Contact Now

1325 china cnc wood router machine , 2016 cnc router for wood carving and engraving

Product Description

Advantage:

  • 1325 cnc router is a common product with high valve for now, its main parts all use international top brands, with very stable function.
  • The worktable is vacuum working table, with very powerful absorbing power, can absorb materials of different sizes. It is with big density (1.3-1.45g/cm), won't be out of shape, and also high temperature-resistant (115℃)
  • With fast working speed, high working efficiency, the engraving speed can be up to 14m/min. The engraving is precise enough, without any Sawtooth ripple, and the cutting edge is quite clear and smooth.

Features:

  • 1300x2500x200 working area
  • 4.5 kw Italy HSD air cooling spindle,18000rpm
  • 5.5 kw Taiwan Delta inverter
  • DSP control system
  • FL118 stepper motor and YAKO2608 driver
  • Imported Taiwan HIWIN 20# Square Linear Guide
  • Z axis Original Taiwan TBI ball screw Transmission
  • T-slot&vacuum table

  • Manual Oil Lubrication system
  • Japan Ormon Limit Switch
  • France Schneider safety switch
  • Separate control box

  • Voltage 220V 3phase 60HZ (option:330v)
  • Plywood case Package
  • Type3/Artcam software
Product details
Programmable CNC Router Machine High Temperature Resistant Worktable
Main parts:
Programmable CNC Router Machine High Temperature Resistant Worktable

Technical Parameters:

Number Description Parameter
1 X,Y,Z Working Area 1300x2500x200mm
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z Repositioning Accuracy ±0.03mm
5 Table Surface T-slot & vacuum Table
6 Spindle 4.5kw Italy HSD air cooling spindle
7 X, Y Structure 20#Taiwan HIWIN Linear guide and helical rack
8 Z Structure Ball screw and#20 Taiwan HIWIN Linear guide
9 Stepper Motor FL118
10 Max. Rapid Travel Rate 45000mm/min
11 Max. Working Speed 30000mm/min
12 Stepper driver YAKO 2608
13 Spindle Speed 0-18000RPM
14 Lubrication system Manual
15 Inverter 5.5kw Taiwan Delta Inverter
16 Command Language G Code
17 Control System DSP
18 Computer Interface USB
19 Flash Memory 512M(U Disk)
20 Collet ER20
21 X,Y Resolution <0.01mm
22 Software Compatibility Type3 Software, (Option: Artcam Software)
23 Running Environment Temperature 0 - 45 Centigrade
24 Relative Humidity 30% - 75%

Application

Furniture:ideally suitable for mass processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.

Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

Programmable CNC Router Machine High Temperature Resistant Worktable
